Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: FOXGOLDEN
  • Model Number: P10-outdoor-fuil color
  • Usage: Outdoor
  • Tube Chip Color: Full Color
  • Display Function: Video
  • Pixels: 10mm
  • Screen Dimension: 960*960mm
  • Product name: Outdoor Waterproof HD Full Color P10 Led Display Screen
  • LED Chip: Cree,Silan,Epistar,Sanan
  • LED type: DIP 346
  • Best Viewing Distance: 10-300m
  • Consumption: 800-1100w/m2
  • Driving method: 1/4 scanning
  • Brightness: 7500-9000nits
  • Refresh rate: 2000Hz
  • Cabinet size: 960*960mm,also customized
  • Certification: CE,RoHS,CCC,SGS,ISO

Packaging & Delivery

Packaging Details Shenzhen Best Price Outdoor Waterproof HD High Brightness Full Color P10 Led Display Screen
ails:
1. Anti-shaking wooden
2. Flight case
3.Carton box
Delivery Time 7-12 Working day

Shenzhen Best Price Outdoor Waterproof HD High Brightness Full Color P10 Led Display Screen

Product Description

Outdoor led display project:

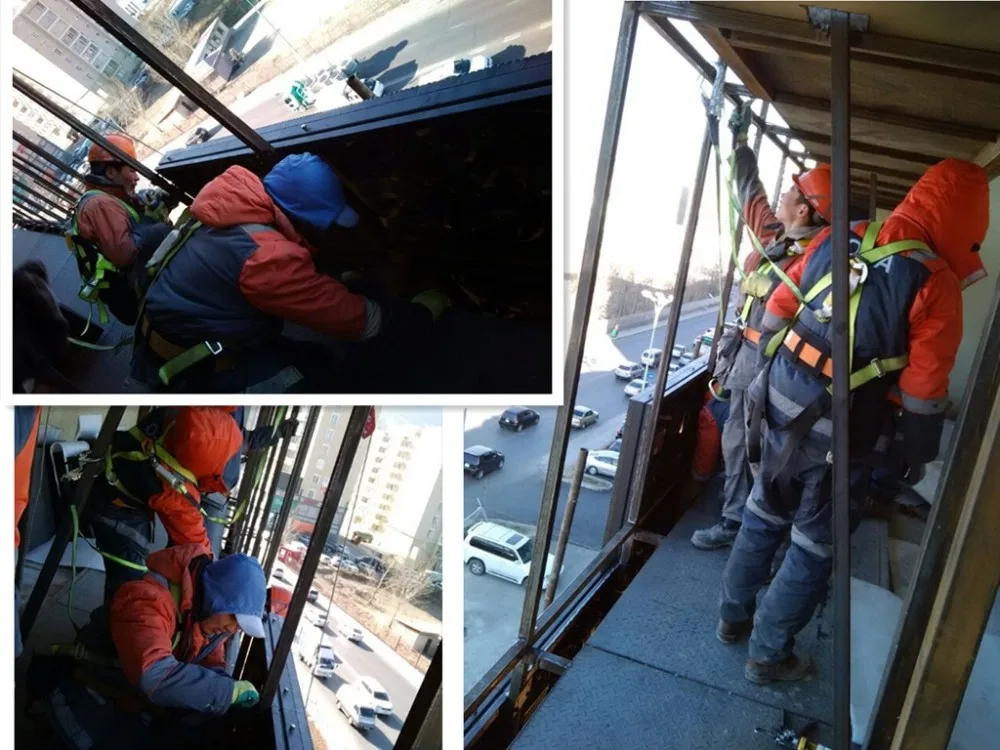

 Installation:




ModelFOX-P6FOX-P8FOX-P10FOX-P16
LED TypeDIP DIP DIP DIP
LED driving method1/4 dynamic scan1/4 dynamic scan1/4 dynamic scan Static
 Board Pixels32*32 (W*H)32*16 (W*H)16*16 (W*H)16*16 (W*H)
 LED board size(mm) 192*192*25256*128*25160*160mm256*256mm
 Normal Cabinet  size960*960768*768mm960*960mm1024*1024mm
Net weight43kg 38kg43kg48kg
 Power  AC220/110 ± 10%, 47~63Hz
 Water proof Front IP65/Rear IP43
Consumption   ≤1500W/m2
Viewing angle (W*H)140° / 70°140° / 70°140° / 70°140° / 70°
 Brightness ≥6000 cd/m2≥7000 cd/m2  ≥7000 cd/m2 ≥6000 cd/m2
  Pixel density 27777dots/m215625dots/m210000dots/m23906dots/m2
Operating temperature  -20ºC to +80ºC
 Operating humidity 10% to 95%
Lifetime (50%brightness  100,000 hours
 Refresh rate 4200 Hz 4200 Hz 4200 Hz 4200 Hz
Module weight 0.78kg0.60kg0.42kg0.92kg
Brightness level Manual 100 levels,automatically 16 levels.



P10:

Advantage:


Long Time:

Lamp:EPISTAR, 5 years warranty, Working Time:15 years.

Save-energy:
IC: MBI5124, Working voltage: 3.3V, Save 35%, Waterproof: ip65.

Well-known brand power supply , saving energy and high efficiency.

P10 adopt Meanwell power supply, conversion ratio up to 82%, low heat dissipation and long life span. Normal power supply conversion ratio is under 80%, and high heat dissipation, not stable, low cost.



Unique guide rain trough design
same time improving cabinet strength,prevents cabinet damage during transportation.



Applications:



Production Video

                                                                                                                                    send us an inquiry

Packaging & Shipping

Delivery Time and packing:

1. Delivery time: Accomplish manufacturing within7- 15 days after receiving the deposit.



2.Before delivery, we will test the display, and keep it light up for 72 hours, and check all the parts of the display to confirm it is OK for delivery.



3.Package:(1)carton (2) anti-shaking wooden case (3)  flight case





Company Information



We have 12-year production experience, We have 12-year design experience of offering solution, installation, and after-sales service, etc.

 There are around 103 countries, and more than 12564 customers, 489 cities and areas who get LED service support and 24-hour contact from FOXGOLDEN, Our LED products mainly concentrated on areas, such as America, Europe, Asia, Africa and Australia ,etc.

Customer visit our FOXGOLDEN



FAQ

Q1: When is the delivery time?

A1: we will accomplish manufacturing within 10 days after receiving the deposit.



Q2: What is the payment method?

A2: We support a variety of payment methods, the most common is the TT.



Q3: What's the pixel pitch for Outdoor LED Display Screen?

A3: Outdoor (P6mm / P8mm/P10mm)



Q4: Where is it used for?

A4: Outdoor & rental use. Widely used for backdrop of staging event, rental business, live show, concert, etc.



Q5: Can it play HD video?

A5: Yes, it can realize HD video function with Linsn controlling system.



Q6: What's the controlling system?

A6: Our standard controlling system for this model is Linsn, Novastar. Also support other controlling system, like Xixun,TF, Colorlight, etc.



Q7: How about the size of project?

A7: Please offer the size with "width by height" of project. We will offer the suitable solution for your project size. I will appreciate it if any drawing files about installation offered.



Q8: How about your service?

A8:

1. Lifetime free maintenance and upgrade.

2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.

3. Customer satisfaction tracking report.

4. Free technician training.

5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.

6. Special service for big project, such as stadium, exhibitions, squares and so on.
